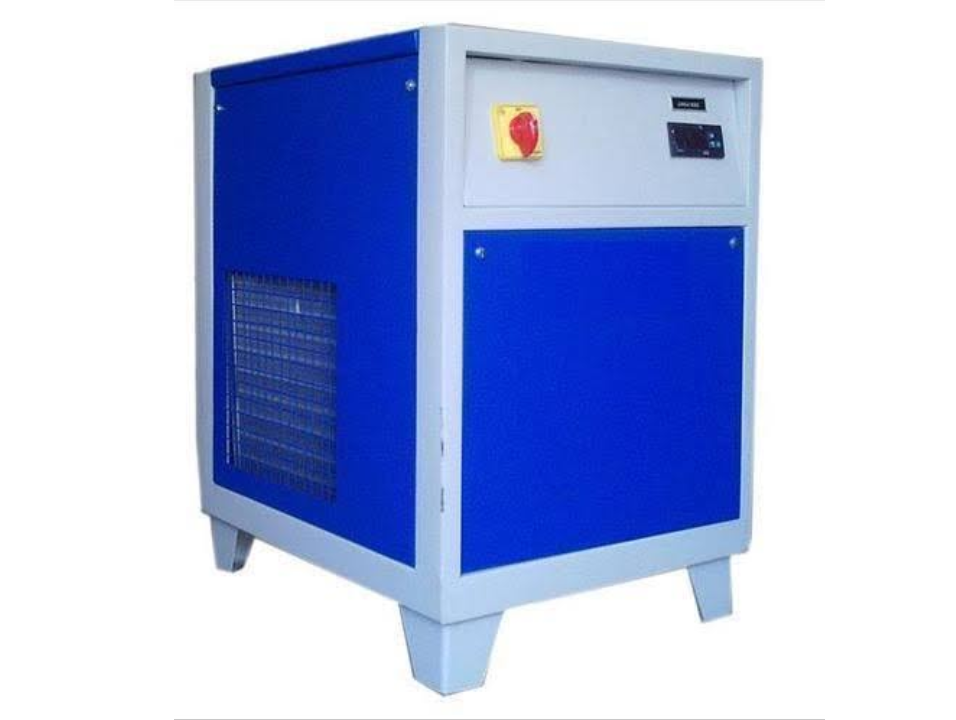

Refrigeration Air Dryer

Silent Features

  • High efficiency integrated heat exchanger with low pressure loss.
  • High level of efficiency for maximum power saving.
  • Environment friendly refrigerant.
  • Low pressure dew point.
  • Optimum condensate separation.
  • Minimum space requirement.
  • Easy installation and maintenance.

MODEL AIR FLOW* MAX OPERATING PRESSURE POWER SUPPLY VERSION*** AIR CONNECTIONS DIAMENSIONS (MM)
m3/min cfm kg/cm2 psi V/ph//HZ BSP(F) LENGTH WEIDTH HEIGHT
S1OR 0.28 10 16 228 230/1/50 Air cooled 1/2" BSP 480 400 625
S2OR 0.57 20 16 228 230/1/50 Air cooled 1/2" BSP 480 400 625
S35R 1.00 35 16 228 230/1/50 Air cooled 1/2" BSP 480 400 625
S50R 1.40 50 16 228 230/1/50 Air cooled 3/4" BSP 480 400 625
S60R 1.70 60 16 228 230/1/50 Air cooled 3/4" BSP 480 400 625
S80R 2.27 80 16 228 230/1/50 Air cooled 1" BSP 680 560 850
S100R 2.80 100 16 228 230/1/50 Air cooled 1" BSP 680 560 850
S125R 3.50 125 16 228 230/1/50 Air cooled 1 1/2" BSP 680 560 850
S150R 4.25 150 16 228 230/1/50 Air cooled 1 1/2" BSP 680 560 850
S200R 5.66 200 16 228 230/1/50 Air cooled 1 1/2" BSP 750 650 1000
S250R 7.07 250 16 228 230/1/50 Air cooled 1 1/2" BSP 750 650 1000
S350R 9.90 350 16 228 230/1/50 Air cooled 2" FLANGED 850 750 1150
S450R 12.75 450 16 228 230/1/50 Air cooled 2" FLANGED 850 750 1150
S550R 15.57 550 16 228 415/3/50 Air cooled 2" FLANGED 1000 850 1350
S650R 18.41 650 16 228 415/3/50 Air cooled 3" FLANGED 1000 850 1350
S750R 21.24 750 16 228 415/3/50 Air cooled 3" FLANGED 1000 850 1350
S900R 25.49 900 16 228 415/3/50 Air cooled 3" FLANGED 1100 950 1500
S11OOR 31.15 1100 16 228 415/3/50 Air cooled 4" FLANGED 1100 950 1500
