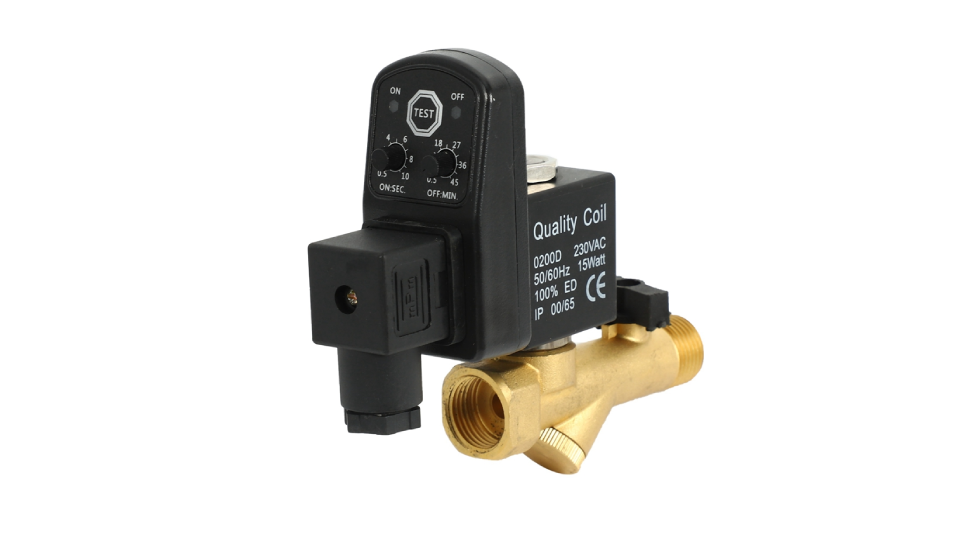

Auto Drain Valve
Auto Drain Valve
- The entrainment of condensate along with air flow in compressed air system to end use applications is extremely harmful, if system not drained regularly.
- The ideal solution for regular effective draining oil & moisture form compressed Air System is Electronic Auto Drain Valve. (E A D V).
Silent Features
- Easy replacement of timer card only and not full assembly.
- Longest drain time frequencies for saving compressed air energy.
- Individual application capacities like receivers, filters and separators etc.
- Longer service life by way of having supplied with inlet 'Y' type strainers.
Advantages
- Prevents moistures / oil carry over to pneumatic equipments.
- Discharges Condensate with high velocity without clogging.
- Lesser maintenance cost of pneumatically operated equipments.
- Increased operation efficiency of pneumatically operated equipments.
Location
- Auto drain valves are installed at Air receiver, After Cooler, Moisture separator, Filters, Dryers & Drop Legs etc.
Technical Specifications
- Cycle time: 10 to 90 Minutes (Adjustable).
- Drain time: 1 to 10 Secs (Factory set 5 Secs).
- Working Pressure: Max 12 Kg. / cm2g.
- Working temp: 70 Deg C max.
- Elect. Supply: 230 V-1ph - 50 Hz.
- Housing: Weather Proof / Shock Proof (Powder Coated).
- Timer Display - Digital
